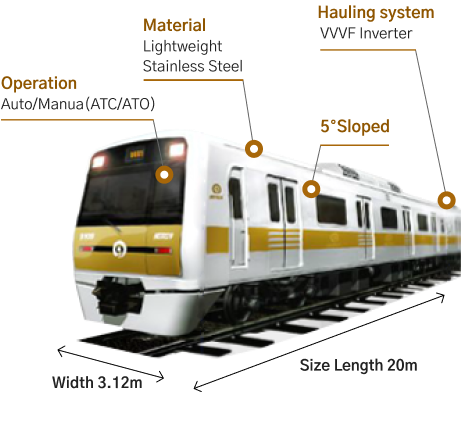

Seoul Metro Line 9 is here for safer and more pleasant trips.
- Configuration 6 Cars / 1 Train Set(Normal Train/Express Train)
- Max Running Speed 80km/h
- Number of Cars 270 Cars(45 Train Sets of 6 Cars)
- Manufacturer Hyundai Rotem
Specifications
| Width : 3,120mm | Length : 19,500mm | Height : 4,010mm |
| Track Gage : 1.435mm | Seats : 306(6 cars) | Standing : 616(6 cars) |
| Total Capacity : 922(6 cars) |
System Performance
| Max. Speed : 100km/h | Max. Running Speed : 80km/h | Start-up Acceleration : 3.0km/h/sec |
| Hauling Voltage : DC1,500V | Speed Control : VVVF Inverter | Brake : Regenerative Air Braking |
